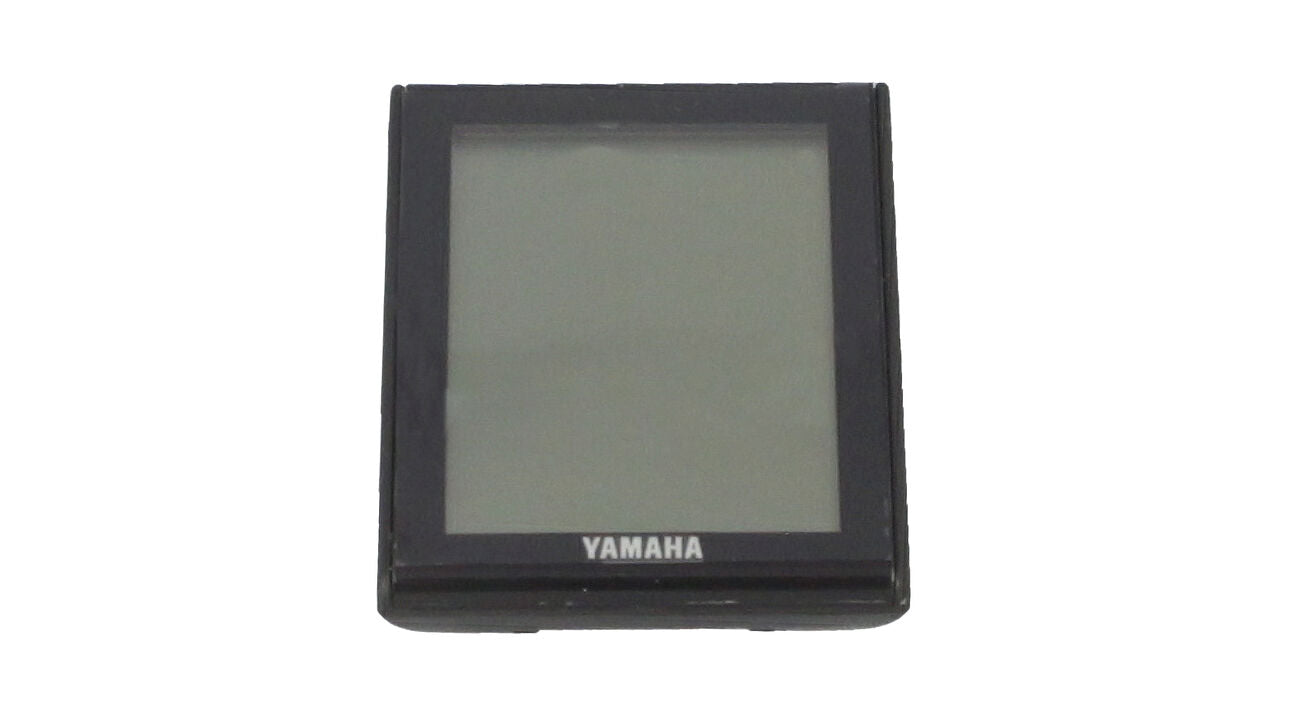

BH Emotion Rebel Yamaha Controller Switch + Display

Special order item - Allow 6-8 weeks

For the 2019 BH Emotion Rebel 27.5 Lite, BH typically used the standard Yamaha Side Switch (Display A). Because BH is the bike manufacturer and Yamaha is the motor supplier, the part has both a BH internal reference and a Yamaha manufacturer part number.

The Part Numbers

To ensure you get the exact replacement, use these identifiers:

• Yamaha Manufacturer Part Number: X0S-83500-01 (sometimes seen as X0S-83500-00)

• BH Bikes Internal Part Number: 386117300

• Common Name: Yamaha Display A (Side Switch)

Key Specifications

Before you buy, confirm these details to avoid getting a version for a different model year:

• Screen: 1.7-inch LCD (integrated into the button housing).



• Compatibility: Designed for Yamaha PW-SE, PW-TE, and PW-ST drive units (which were standard on the 2019 Rebel series).

• Cable Length: The standard version for this bike usually has a 550mm or 850mm lead. (The 550mm is generally sufficient for the 27.5 Lite frame size).

• Connector: It features the circular CanBus connector.

Replacement Advice

1. Direct Plug-and-Play: On many 2019 BH models, there is a connection point tucked inside the frame or just behind the headtube. However, if the cable runs all the way into the motor, you will need to remove the plastic motor covers and possibly drop the motor mounting bolts slightly to access the display port.
