Chapter2 Thru Axle Set

Lightweight alloy thru axle set (front and rear)

Not all Chapter2 frames use the same size thru axle size.

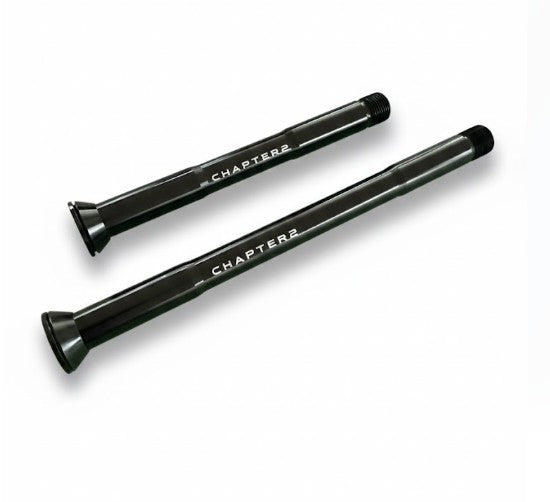

Thru Axle 1 for Kaha UDH & Rira

• Front: 12mm x 114mm | Thread 18mm Pitch 1.0
• Rear 12mm x 163mm | Thread 18mm Pitch 1.0
• 6mm hex head w. 19mm diameter 45deg cone

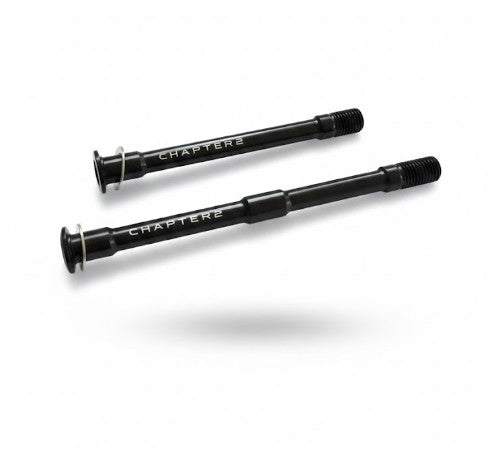

Thru Axle 1.5 for Toa, Koko, AO, Huru, Rere, Tere & Older Kaha w/o UDH

• Front: 12mm x 120mm | Thread 10mm Pitch 1.5
• Rear: 12mm x 163mm | Thread 10mm Pitch 1.5
• 6mm hex head w. 19mm diameter with washer
